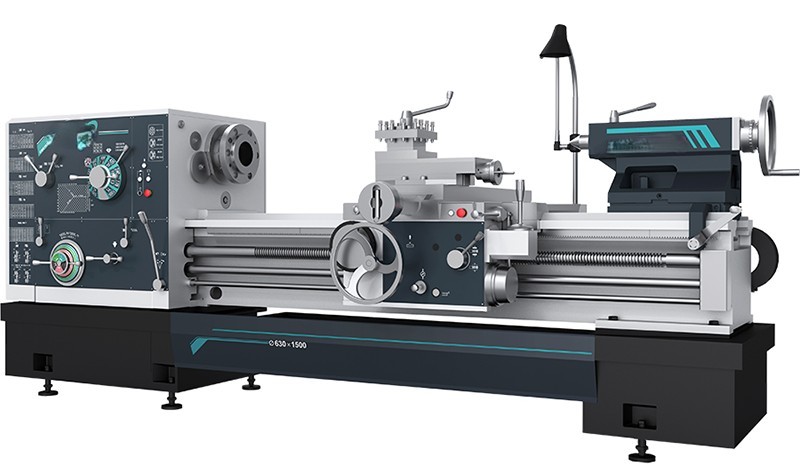

HEAVY PRECISION LATHE MACHINE CDS6250B/CDS6266B

PRECISION LATHE MACHINE

  • Robust Machine Structure :
    Constructed with a high-strength cast-iron bed and reinforced base structure to provide outstanding rigidity, stability, and vibration resistance during heavy machining operations.
  • Precision Machining Accuracy
    Designed with precision-ground spindle assemblies and carefully aligned components to achieve high dimensional accuracy, smooth surface finish, and reliable repeatability.
  • Multi-Speed Spindle System :
    Features a wide spindle speed range suitable for both heavy cutting and fine precision turning, allowing efficient machining across different materials and applications.
  • Smooth Carriage & Feed Mechanism
    Equipped with a precision-engineered carriage and cross-slide system for effortless movement, accurate feed control, and enhanced operator handling during long machining cycles.
Enquiry for more Details

SPECIFICATIONS

Machine Specifications
Main specifications Unit CDS6250B CDS6266B
CAPACITY Max.swing over bed mm 500 660
Max.swing over cross slide mm 290 440
Max.swing over gap mm 760 870
Effective length of gap mm 280
Center Distance mm 750\1000\1500\2000\3000
HEADSTOCK Spindle hole mm 82
Spindle taper mm Metric 90(1:20)
Spindle speed(Number) rpm 26-2000(16 steps)
FEEDS Longitudinal metric feeds mm/r 45 kinds 0.044-1.48
Cross metric feeds mm/r 45 kinds 0.022-0.74
Metric threads range mm 73kinds 0.5-80
Inch threads range TPI 47kinds 7/16-80
Module threads range MP 45kinds 0.5-40
Pitch threads range DP 47kinds 7/8-160
CARRIAGE Max.travel of top slide mm 150
Max.size of toolshank m² 25*25
TAILSTOCK Dia.of tailstock sleeve mm 75
Taper of tailstock sleeve / MT5
Max.travel of tailstock mm 150
MOTOR Main drive motor KW 7.5
