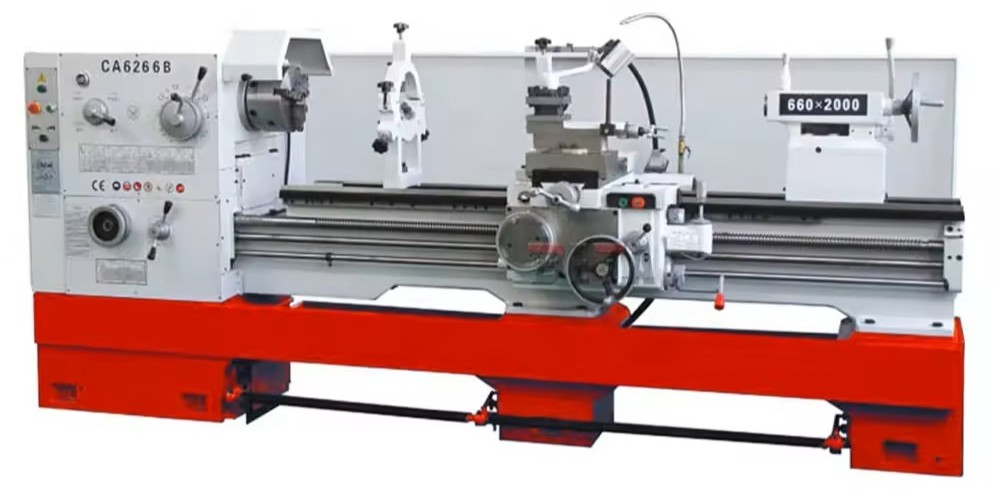

HEAVY PRECISION LATHE MACHINE LCS500B/LC500B/LC660B

HEAVY PRECISION LATHE MACHINE

  • High Rigidity :
    Engineered with a heavily ribbed cast-iron bed and hardened precision guideways, ensuring maximum structural stability and minimum vibration during heavy-duty machining operations.
  • Superior Accuracy :
    Manufactured with precision-ground spindle systems and strict alignment tolerances to deliver exceptional concentricity, dimensional accuracy, and repeatable machining performance.
  • Wide Range Spindle Speeds
    Equipped with versatile spindle speed options for handling various materials and machining requirements, enabling smooth operation from rough cutting to fine finishing.
  • Heavy-Duty Performance :
    Built to handle large workpieces and demanding industrial applications with powerful cutting capability, excellent load-bearing strength, and long-term operational reliability.
Enquiry for more Details

SPECIFICATIONS

Machine Specifications
Main specifications Unit LCS500B LC500B LC660B
CAPACITY Max.swing over bed mm 500 500 660
Max.swing over cross slide mm 300 300 420
Max.swing over gap mm 710 710 870
Effective length of gap mm 230 230
Center Distance mm 1000\1500\2000 1000\1500\2000\3000
Bed Width mm 390 405
HEADSTOCK Spindle hole mm 82
Spindle taper mm Metric 90(1:20)
Spindle speed(Number) rpm 9-1600(24 steps)
FEEDS Longitudinal metric feeds mm/r 93 kinds 0.028~6.43
Cross metric feeds mm/r 93 kinds 0.012~2.73
Metric threads range mm 48kinds 0.5~224
Inch threads range TPI 46kinds 1/8~72
Module threads range MP 42kinds 0.5~112
Pitch threads range DP 45kinds 1/4~56
CARRIAGE Max.travel of top slide mm 145
Max.travel of cross slide mm 320 360
Max.size of toolshank m² 25*25
TAILSTOCK Dia.of tailstock sleeve mm 75
Taper of tailstock sleeve / MT5
Max.travel of tailstock mm 150
MOTOR Main drive motor KW 7.5
