Horizontal Boring Machine

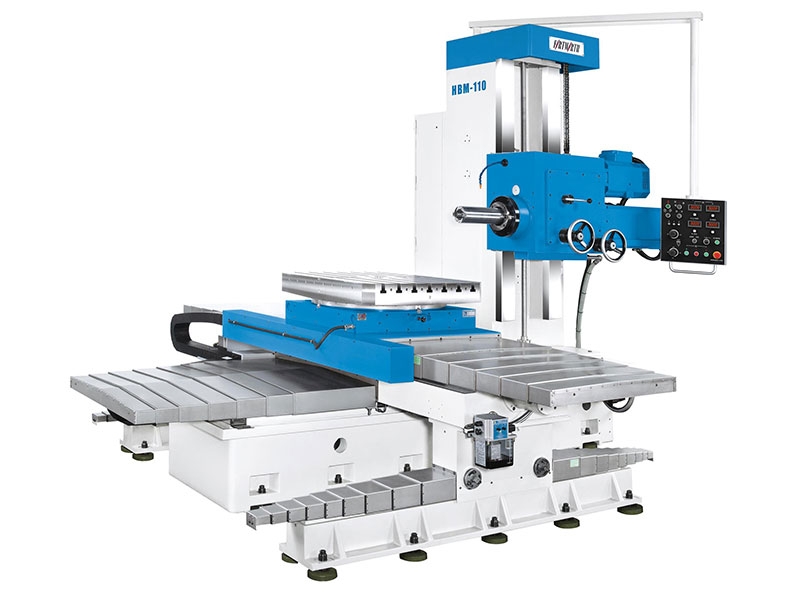

HORIZONTAL BORING MACHINE TPX6111/6113

Heavy-Duty Machine Construction :
Built with a robust cast-iron structure and reinforced base design to provide exceptional rigidity, vibration resistance, and long-term operational stability during heavy machining applications.
High Precision Boring Performance :
Engineered with precision spindle systems and accurately machined guideways to ensure superior boring accuracy, smooth surface finishing, and consistent machining repeatability.
Multi-Functional Machining Capability :
Designed for a wide range of operations including boring, drilling, milling, reaming, and facing, making it ideal for heavy engineering, fabrication, and industrial manufacturing applications.
Powerful Spindle & Cutting Efficiency :
Features a high-performance spindle with multiple speed and feed options to handle heavy cutting operations efficiently across various materials and large workpieces.

Machine Specifications

	Main specifications	Unit	TPX6111	TPX6111/2	TPX6111/3	TPX6113	TPX6113/2
Spindle	Diameter	mm	110	110	110	130	130
	Taper	/	MT6/ISO50	MT6/ISO50	MT6/ISO50	Metric 80	Metric 80
	Max torque	NM	1225	1225	1225	3136	3136
	Speed range/steps	rpm	8-1000/22	8-1000/22	8-1000/22	4-800/24	4-800/24
Face plate	Max torque	NM	1960	1960	1960	4900	4900
	Diameter	mm	600	600	600	750	750
	Speed range/steps	rpm	4-200/18	4-200/18	4-200/18	2.5-125/18	2.5-125/18
Work table	Dimensions	mm	1100*960	1100*960	1250*1100	1600*1400	1800*1600
	Max load weight	kg	5000	5000	5000	8000	10000
	T-slot size/count	mm	22/7	22/7	22/7	28/9	28/11
	X/Y/Z axis travel	mm	900/900/1400	1250/900/1400	1600/1200/1400	1600/1400/2000	2000/1800/2000
Work range	W axis travel(spindle)	mm	600	600	600	900	900
	U axis travel(face plate)	mm	180	180	180	250	250
	B axis rotary angle	°	360	360	360	360	360
Others	Main motor power	KW	7.5	7.5	7.5	11	11
	Overall dimension	mm	490024502750	490028702750	502533603080	700036503450	705046703800
	Machine weight	kg	11500	13000	14000	24000	28000
