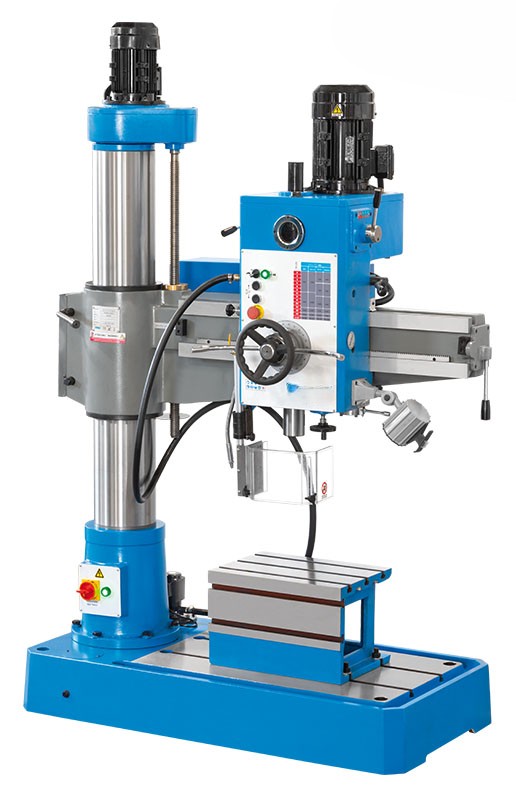

RADIAL DRILLING MACHINE
Z3040/3050

RADIAL DRILLING MACHINE

  • Robust Machine Construction :
    Built with a heavy-duty cast-iron base and rigid radial arm structure to provide excellent stability, reduced vibration, and reliable performance during intensive drilling operations.
  • High Precision Drilling :
    Engineered with precision spindle alignment and accurately machined guideways to ensure superior drilling accuracy, smooth operation, and consistent machining results.
  • Flexible Radial Arm Movement :
    Features a versatile radial arm design with easy vertical and horizontal movement, allowing convenient positioning for drilling large and heavy workpieces with greater flexibility.
  • User-Friendly Operation & Technology :
    Integrated with easy-to-use controls, coolant systems, safety features, and optional Digital Readout (DRO) support for improved productivity, precision, and operator convenience.
Enquiry for more Details

SPECIFICATIONS

Machine Specifications
Main specifications Unit Z3040×10 Z3040×13 Z3040×13/1 Z3050×16 Z3050×16/1
Max. drilling capacity mm 40 40 40 50 50
Distance spindle axis to column mm 290-1000 300-1230 300-1300 360-1600 350-1600
Diameter of column mm 230 230 300 280 350
Spindle taper / MT4 MT4 MT4 MT5 MT5
Spindle travel mm 200 200 280 280 315
Spindle speed range/steps rpm 12steps/35-1400 12steps/32-1220 16steps/32-2500 6steps/78-1100 16steps/25-2000
Spindle feed range mm/r 0.01/0.16/0.25 0.01/0.16/0.25 16steps/0.10-1.25 6steps/0.04-3.2 16steps/0.04-3.2
Distance spindle nose to working table mm 140-860 230-1120 300-1320 260-1150 320-1220
Dimension of worktable mm 490*340*295 540*380*300 600*450*450 650*465*400 630*500*500
Main motor KW 2.2 1.5/2.2 3.0 4.0 4.0
Package dimension mm 1750*800*2150 1800*800*2150 2100*900*2300 2300*1060*2650 2500*1060*2650
Net weight kg 1100 1200 1900 2300 3400
