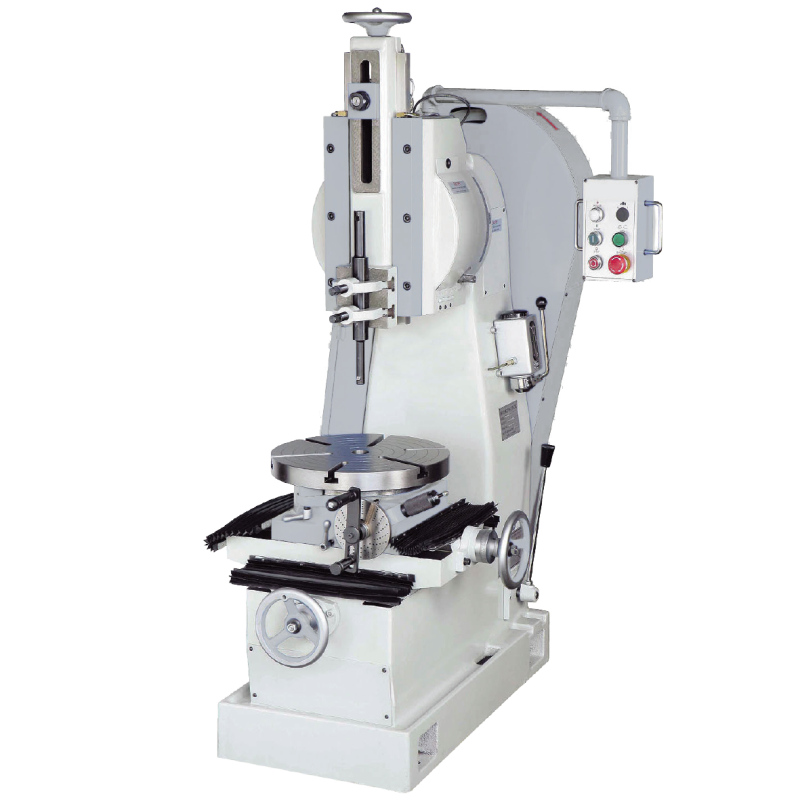

SLOTTING MACHINE
B5020/5032/5040

SLOTTING MACHINE

  • Heavy-Duty Machine Construction :
    Built with a rigid cast-iron frame and reinforced base structure to provide excellent stability, reduced vibration, and reliable performance during heavy slotting operations.
  • Precision Machining Accuracy :
    Engineered with precision guideways and accurate ram movement to ensure superior dimensional accuracy, smooth surface finish, and consistent machining quality.
  • Powerful Slotting Performance :
    Designed for efficient machining of internal slots, keyways, grooves, and irregular surfaces with strong cutting capability and dependable operational performance.
  • Smooth Ram & Feed Mechanism :
    Equipped with a precision ram drive system and smooth feed controls for accurate vertical cutting movement, improved machining control, and enhanced productivity.
Enquiry for more Details

SPECIFICATIONS

Machine Specifications
Main specifications Unit B5020 B5032 B5040 B5050
Max. cutting length mm 200 320 400 500
The trips of ram working times 32/50/80/125 20/32/50/80 20/32/50/80 9/12/15/18/25/36/50
The vertical adjustment distance of ram mm 230 315 315 430
Max. size of the plug mm 25*40 25*40 25*40 25*40
Diameter of work table mm 500 630 630 1000
The distance from cutter to front wall of bed mm 485 600 600 990
The distance from table to carriage bottom mm 320 490 690 740
Work table longitudinal travel mm 500 630 630 660
Work table cross travel mm 500 560 560 1000
Work table feed range mm 0.08~1.21 0.08~1.21 0.08~1.21 0.01~1.2
Main motor power KW 3.0 4.0 4.0 4.0
Overall dimension mm 1916*1305*1995 2180*1505*2285 2290*1525*2485 3480*2085*3305
Net weight kg 2200 3000 3600 10300
