Advanced 3D five-axis fiber laser processing line engineered for the automated fabrication of structural steel including H-beams, I-beams, channel steel, square tubes, and angle profiles. Replaces traditional sawing, manual drilling, and plasma flame cutting by integrating high-precision beveling, contour cutting, marking, and hole-making in a single continuous automated operation.
Model Variants
We can customise all Specification as client needs
3D Five-Axis Bevel Cutting Head :
Equipped with a high-precision 3D 5-axis laser cutting head capable of ±45° to ±90° multi-angle rotation, enabling clean weld-ready bevel joints (K, V, Y bevels) on both flanges and web surfaces without secondary grinding.
Integrated Multi-Function Fabrication :
Combines cutoff, hole drilling, slotting, weld seam prep, cope cuts, and part marking into a single continuous clamping cycle, significantly accelerating fabrication throughput for steel structure manufacturing.
Automated Heavy Conveyor & Material Handling :
Integrated heavy-duty motorized roller conveyor system, automatic measuring probes, beam alignment trolleys, and pneumatic clamping units capable of handling long structural steel up to 12,000 mm – 24,000 mm.
3D Model Import & Intelligent Nesting Software :
Directly imports TEKLA 3D CAD/CAM models, featuring automated 3D nesting, laser trajectory optimization, heat distortion compensation, and real-time beam deformation scanning for minimal material waste.
System Views (Outside & Inside Processing Chamber)
1. Outside System Line

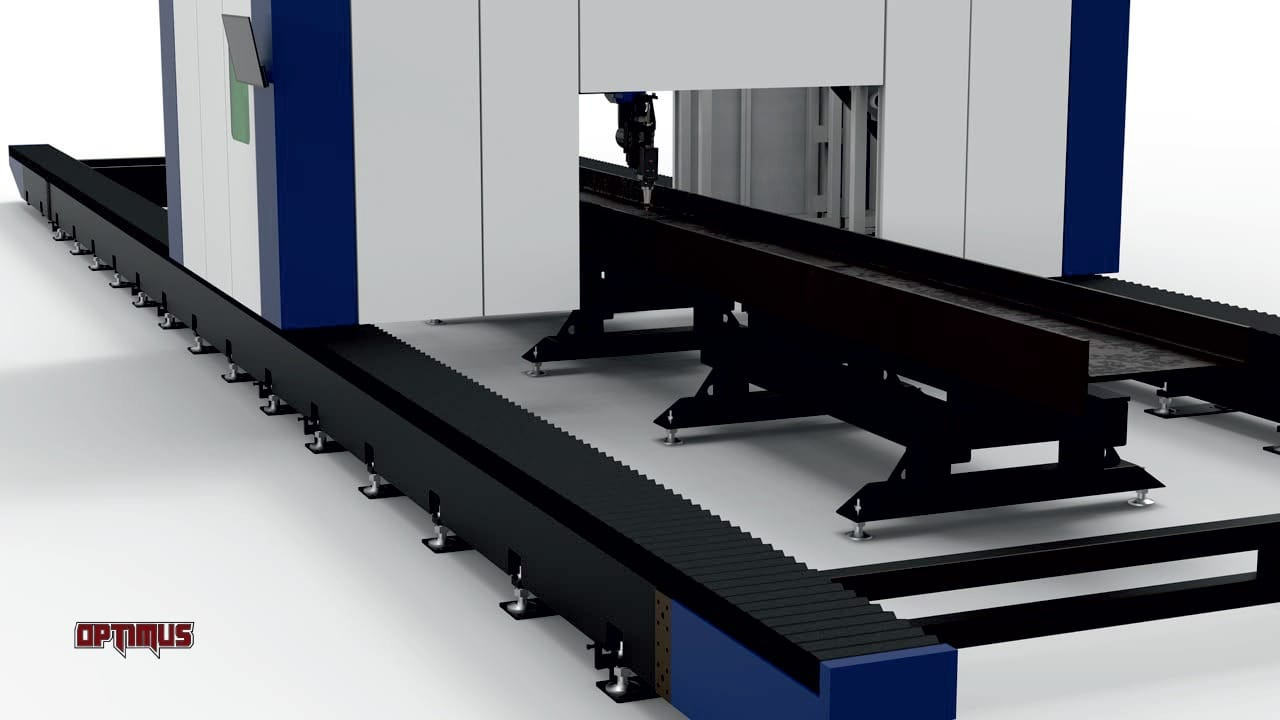

2. Inside Processing Chamber
Detailed performance metrics, capacity dimensions, and drive parameters across models.
Customizable Specs
We can customise all Specification as client needsCNC Machines
Heavy-Duty Industrial DutyMulti-CNC Supported
Fanuc | Siemens | Mitsubishi | FAGORSub-Micron Accuracy
100% Factory Calibrated| Group | Parameter Description | Unit |
Model Variant
HBL-6000
|
Model Variant
HBL-12000
|
Model Variant
HBL-20000
|
|---|---|---|---|---|---|
|
Laser & Capacity
|
Laser source type | / | Fiber Laser (IPG / Raycus / Max) | Fiber Laser (IPG / Raycus / Max) | Fiber Laser (IPG / Raycus / Max) |
| Laser power options | kW | 6kW / 12kW | 12kW / 20kW | 20kW / 30kW | |
| Max. workpiece weight load | kg | 5,000 | 10,000 | 16,000 | |
| Max. workpiece length capacity | mm | 6,000 | 12,000 | 24,000 | |
|
Processing Range
|
H-Beam / I-Beam web height range | mm | 100 - 600 | 100 - 1000 | 100 - 1250 |
| H-Beam / I-Beam flange width range | mm | 100 - 400 | 100 - 500 | 100 - 600 | |
| Channel steel (C/U beam) range | mm | 100 - 400 | 100 - 500 | 100 - 600 | |
| Square / Rectangular tube range | mm | 100×100 - 400×400 | 100×100 - 600×600 | 100×100 - 800×800 | |
|
Beveling & Motion
|
Cutting head type | / | 3D 5-Axis Laser Head | 3D 5-Axis Laser Head | 3D 5-Axis Laser Head |
| Bevel cutting angle range | deg | ±45° | ±45° | ±45° | |
| Max. cutting thickness (Carbon Steel) | mm | 25 | 35 | 50 | |
|
Feed & Accuracy
|
Positioning accuracy (X/Y/Z) | mm | ±0.05 | ±0.05 | ±0.08 |
| Re-positioning accuracy | mm | ±0.03 | ±0.03 | ±0.05 | |
| Max. rapid traverse speed | m/min | 60 | 60 | 50 | |
|
Control & Dimensions
|
CNC control system & Software | / | Bus CNC System + TEKLA 3D Nesting | Bus CNC System + TEKLA 3D Nesting | Bus CNC System + TEKLA 3D Nesting |
| Supported CAD/CAM file formats | / | TEKLA / STEP / IGES / DXF | TEKLA / STEP / IGES / DXF | TEKLA / STEP / IGES / DXF | |
| Total line weight approx. | Tons | 18 | 32 | 55 |
